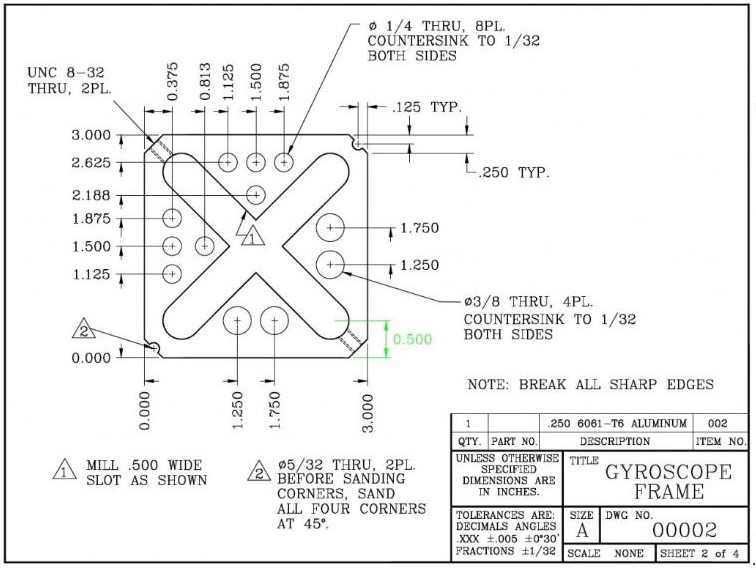

Gyroscope Frame Drawing
Gyroscope Frame Drawing

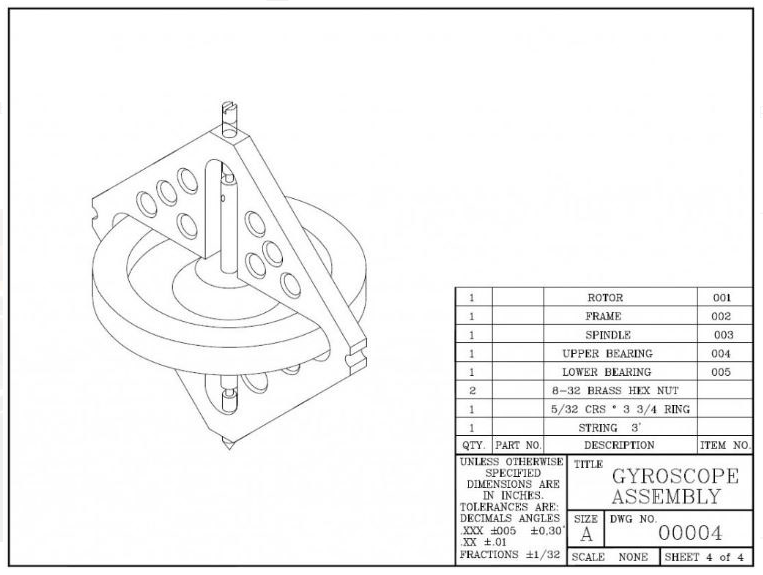

Gyroscope Assembly Drawing
Gyroscope Assembly Drawing

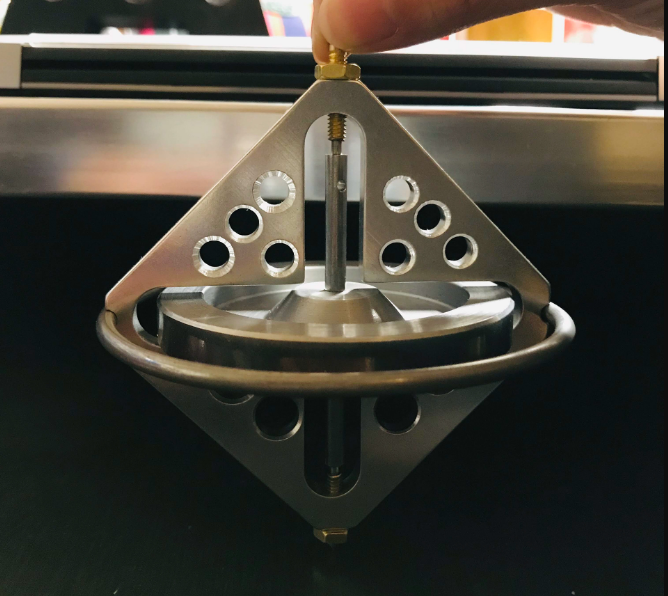

Gyroscope Photo
Gyroscope Photo

Project Information

  • Category: Fabrication

  • Short clip of gyroscope in action!

Project Details

This is a project from the Manufacturing Processes course at UC Davis. I manufactured and assembled a gyroscope that can spin for up to 3.5 minutes using mills, lathes, drill presses, and additional tools found in the UC Davis Engineering Student Design Center (ESDC).
